Description

Serial Numbers

90346-A 2002 (New/Never Used)

90346-B 2002 (New/Never Used)

90346-C 2002 (New/Never Used)

Brief Technical Description:

MFG: Waukesha
Type: LT GSU
KVA Rating: 156/208/260 MVA
Class: OA/FA/FA
Temp Rise: 55/60 (C)
High Side HV: 138000 GRDY/79670 WYE
Low Side HV: 15600 DELTA
TAPS: 131100, 134550, 138000, 141450, 144900

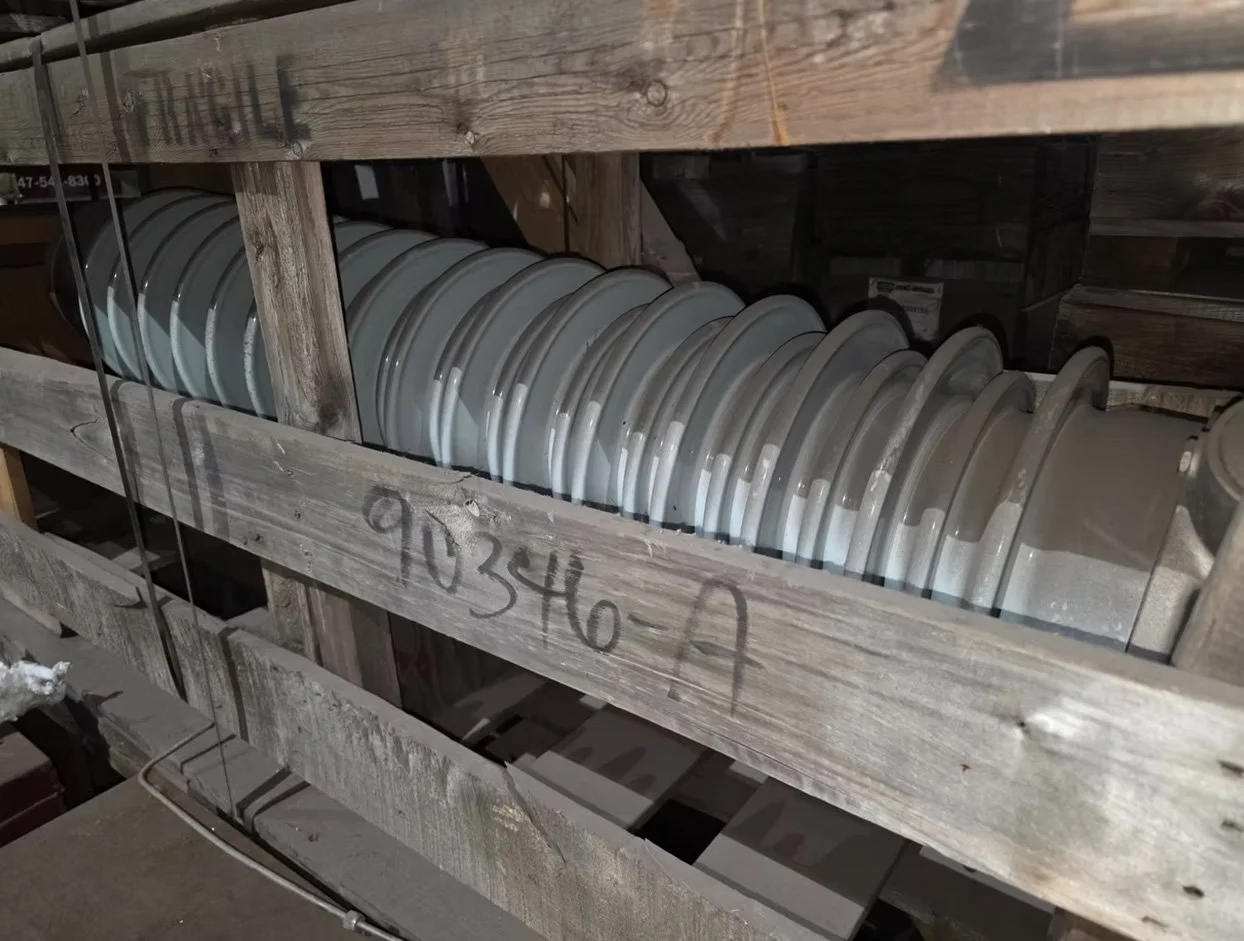

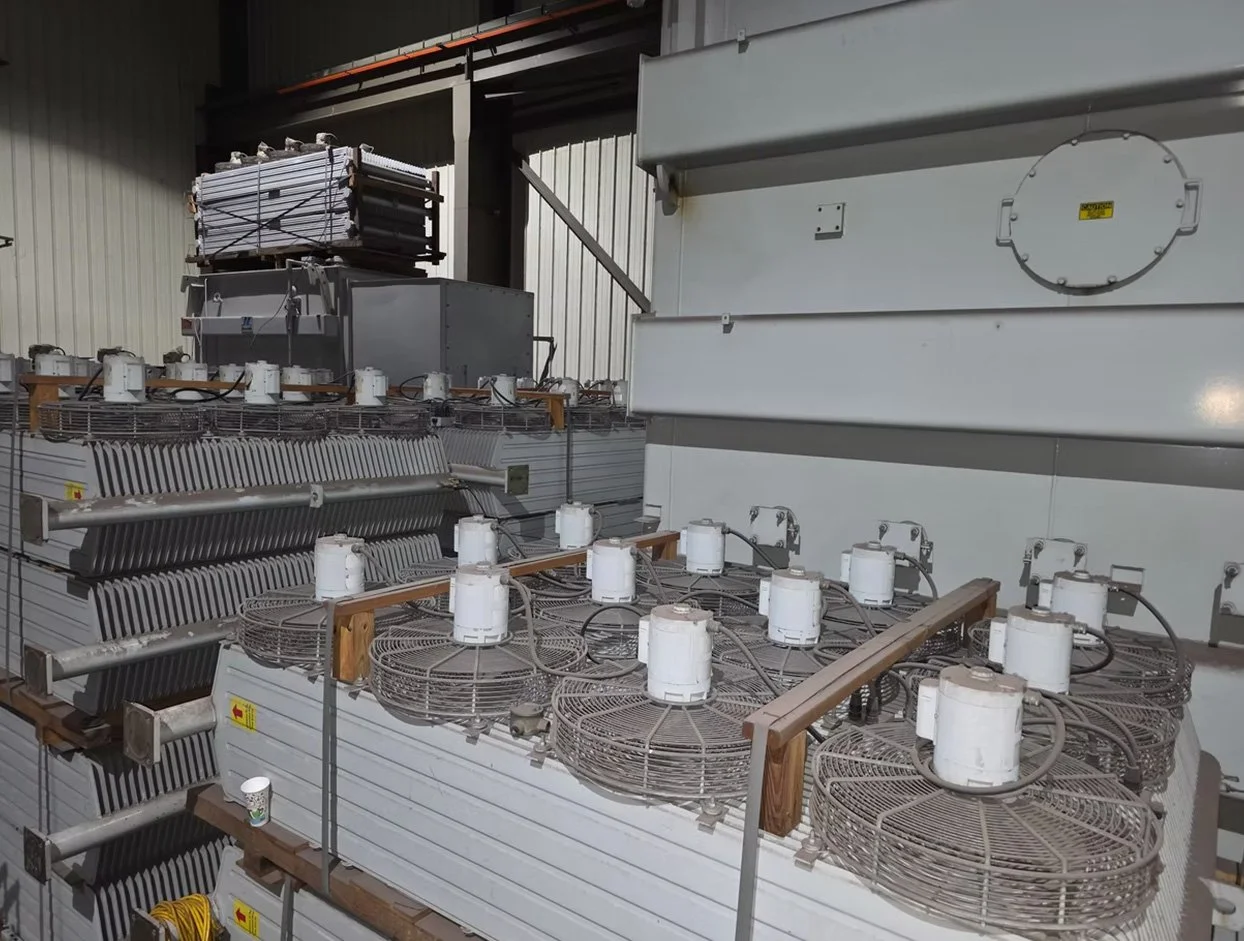

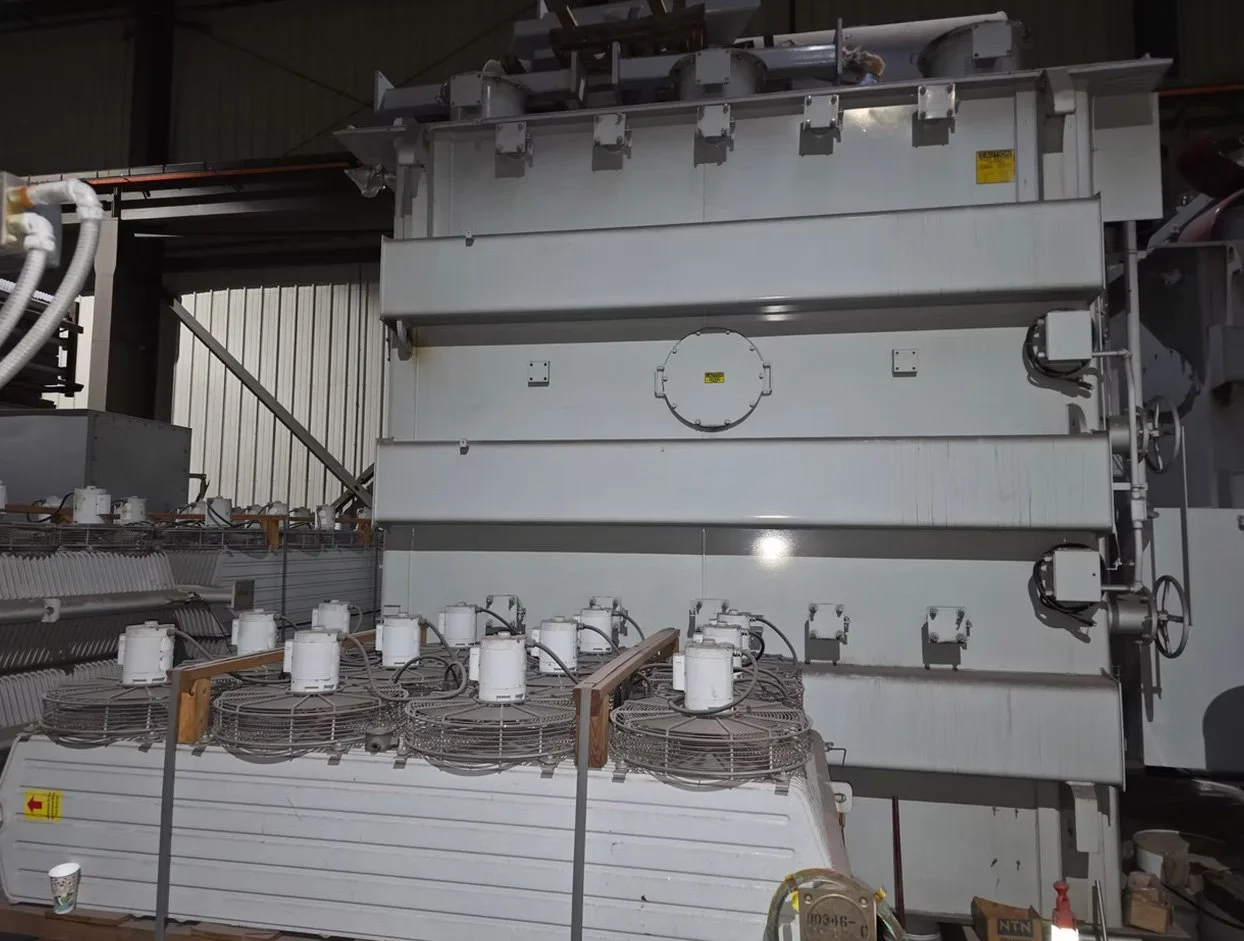

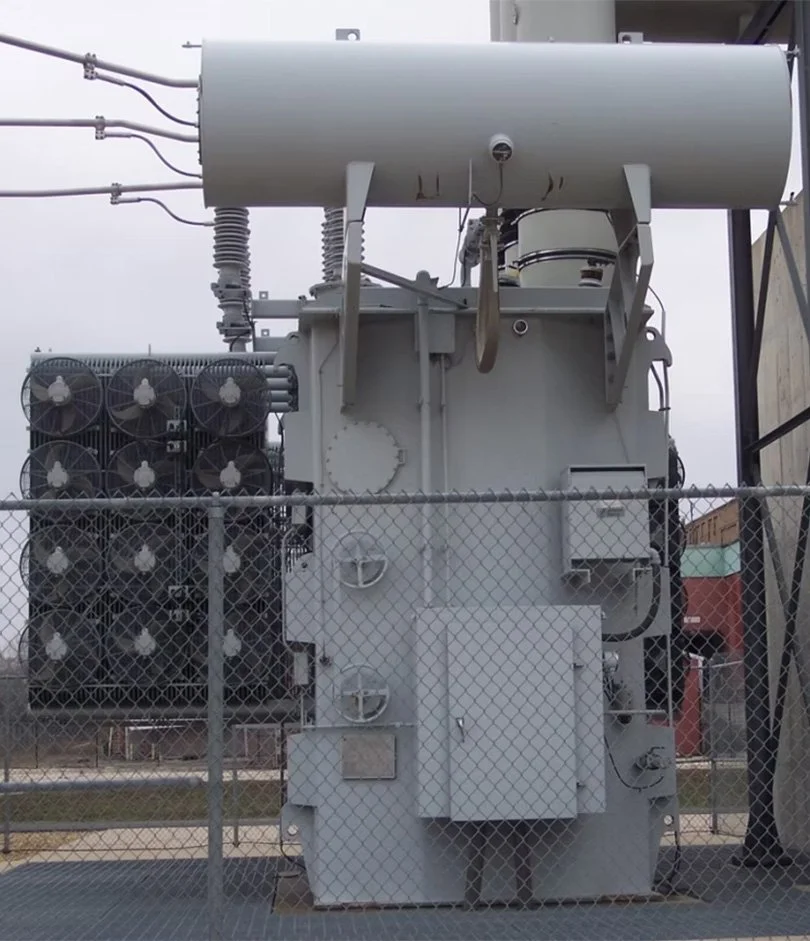

Radiators, Fan Assembly, Lapp POC and POC-A
Condenser Bushings, Ohio Brass Dynavar VN Station
Class Surge Arresters, Buchholz Relays

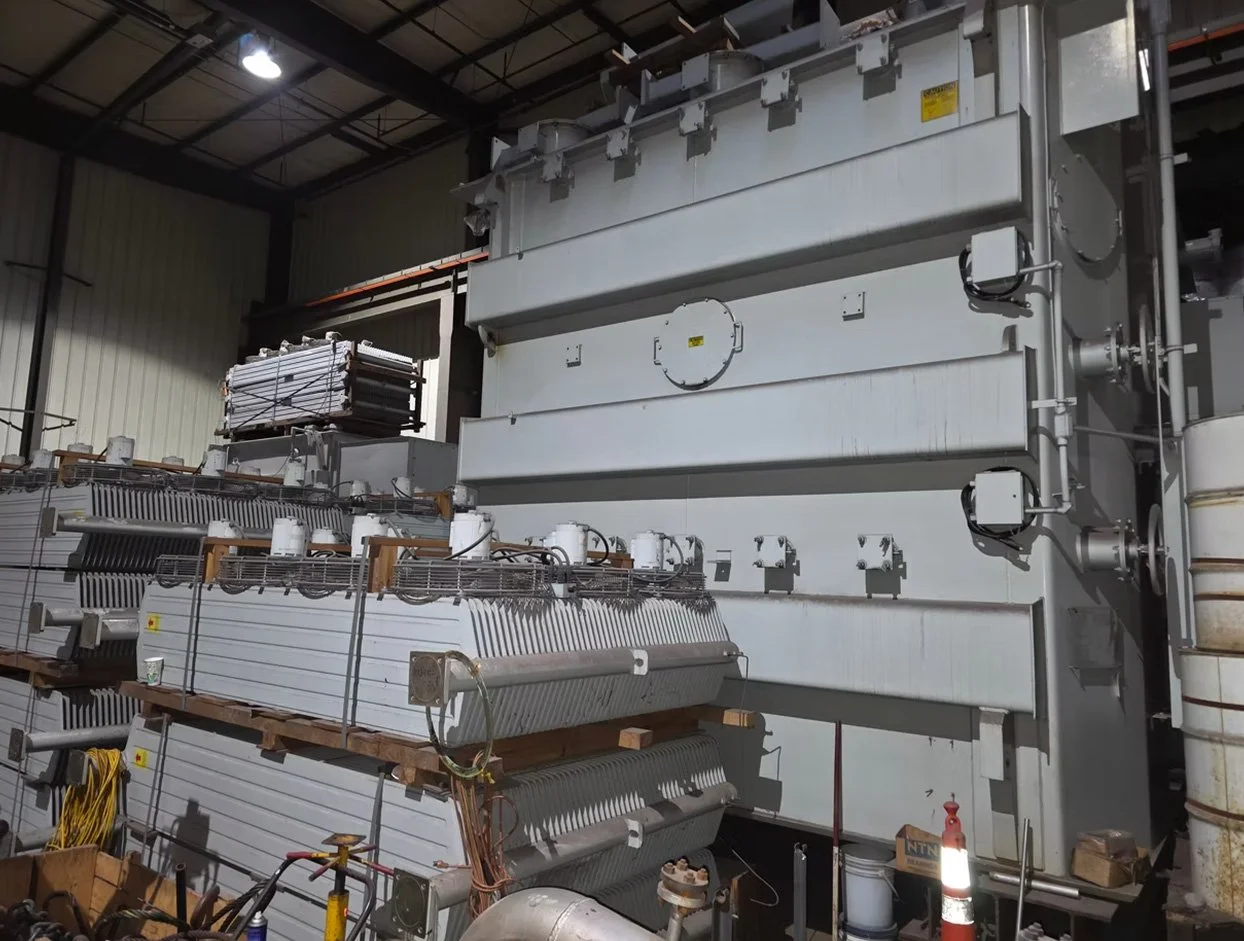

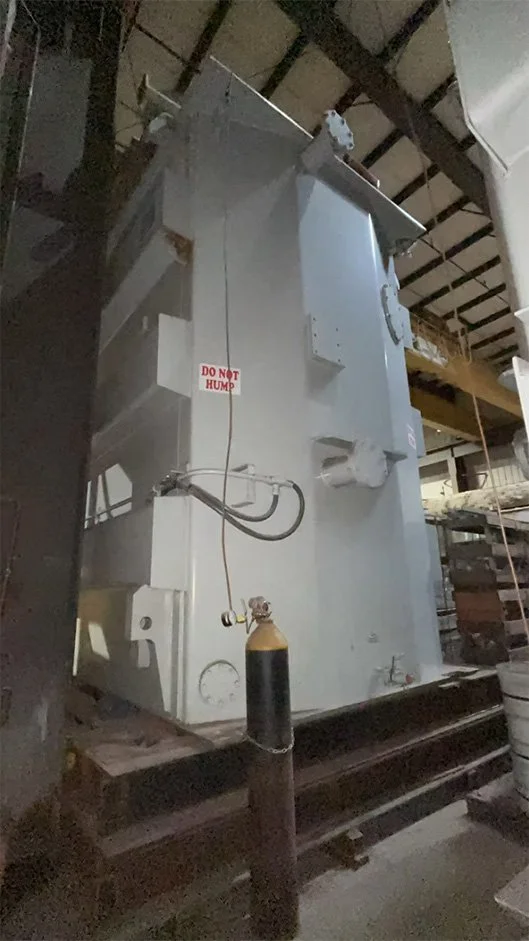

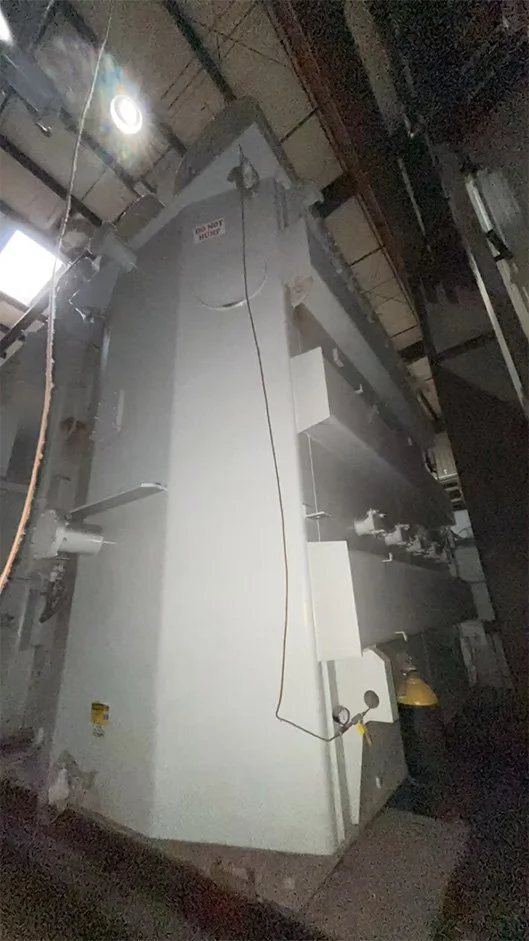

Stored Indoors- Climate Controlled Building

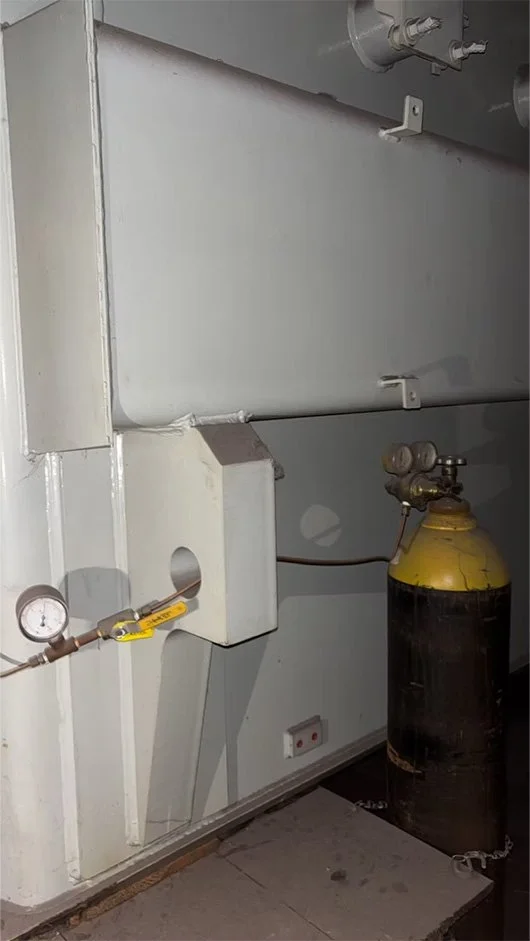

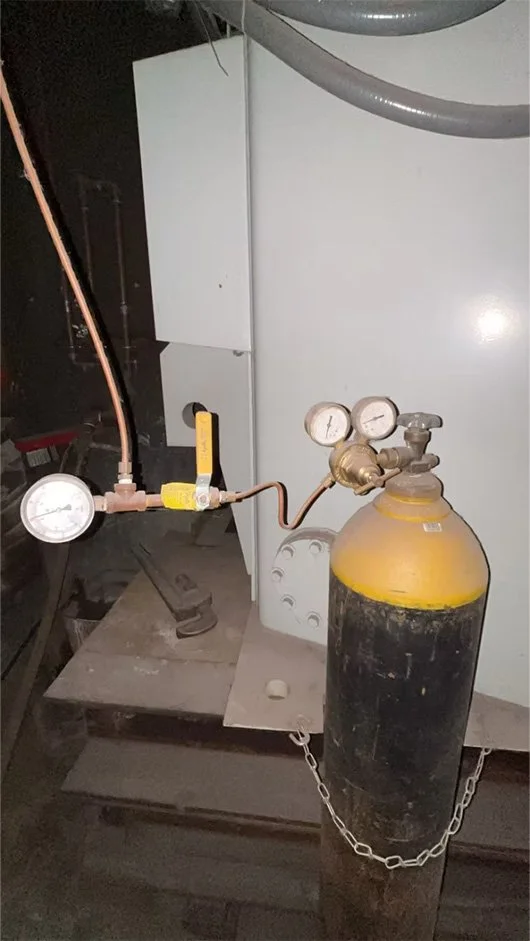

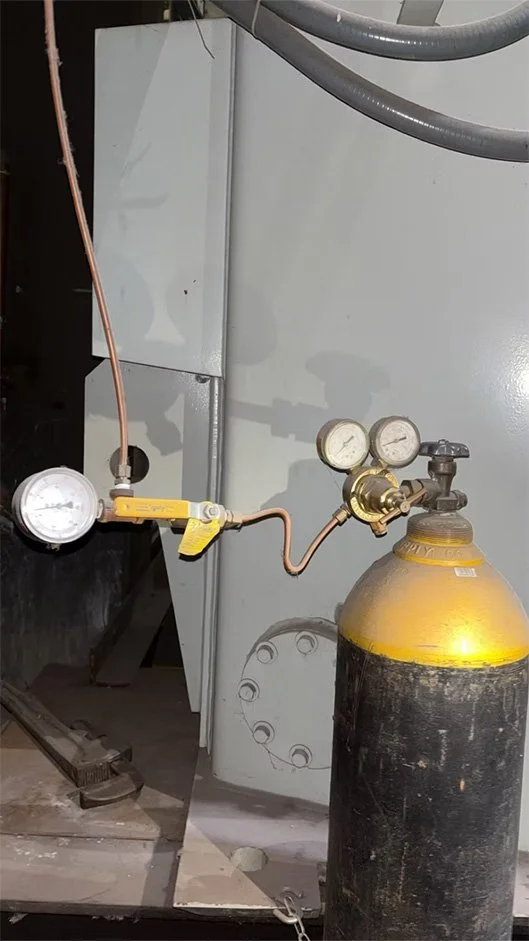

Nitrogen Blanket

WEIGHTS AND DIMENSIONS:

Dimensions:
Height: 260 inches
Width: 165 inches
Length: 188 inches

Weights:
Untanking: 192,000 pounds
Tanks and Fittings: 90,000 pounds
Oil (main tank 11,370 gal): 86,400 pounds
Oil (conservator 600 gal): 4,600 pounds

Total Weight: 373,000 pounds

Drawings Available:

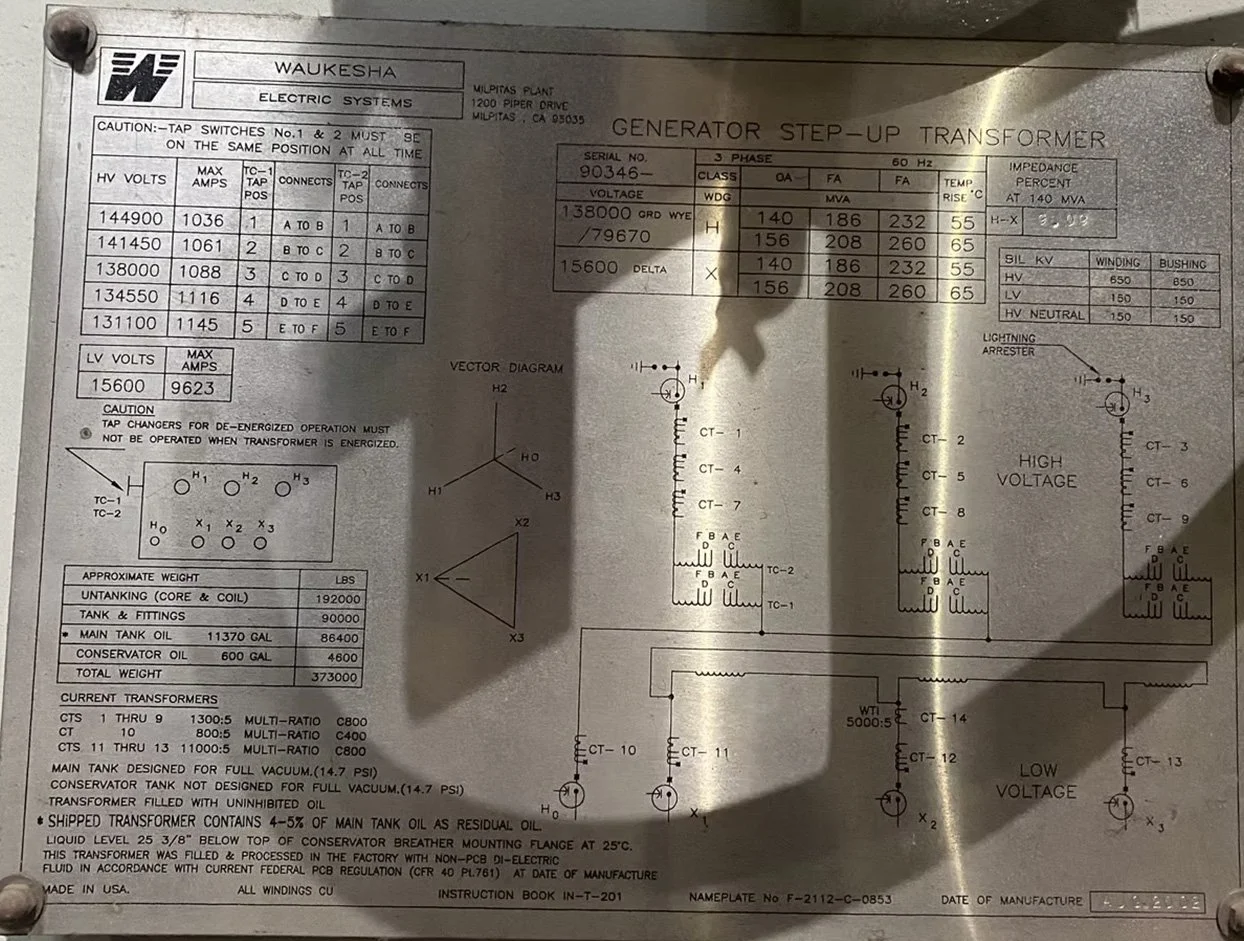

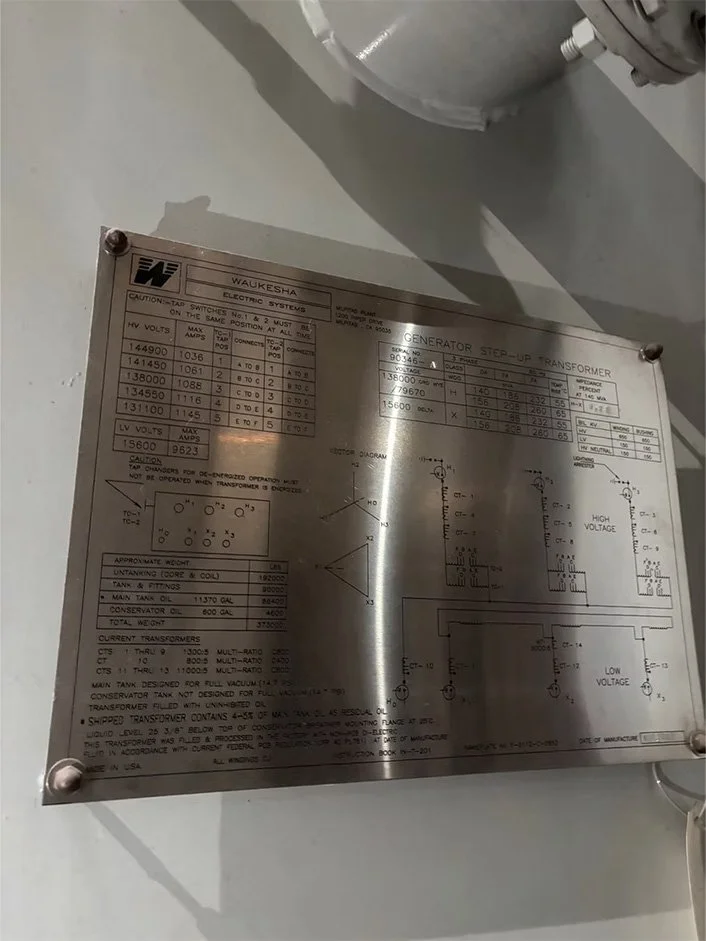

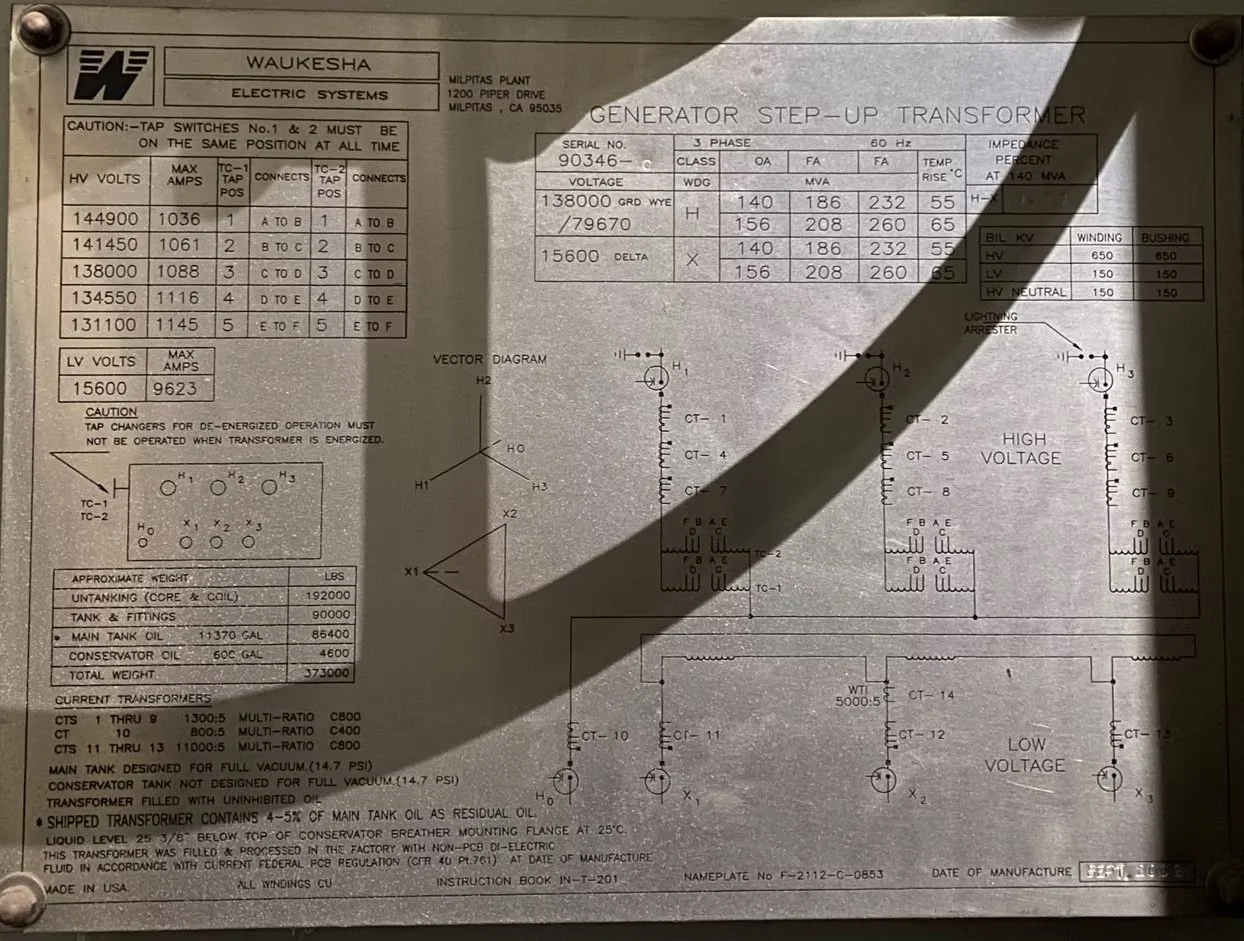

Nameplate Drawing
Schematic Diagram
Transformer Outline
O&M Manuals
